Preliminary Ordering Procedure
(For pull-only cable controls)

1. Left innermember end fitting part number.


2. Left conduit end fitting part number.


3. Length "A" between conduit fitting reference points in inches.


4. Right conduit end fitting part number.


5. Right innermember end fitting part number.


6. Length "L" of innermember assembly between fitting reference points in inches.


7. Travel of the innermember in the conduit in inches. (Note dimensions "L" must be sufficiently greater then dimension "A" to allow desired travel). *Removable items should be listed separately.

CS551 - 072 - 52 - 070 - TE505 - 64.5- 6

(Sample Ordering Code)


Left innermember end fitting part number(CS551)
(Clevis end fitting with cable stop)
Left conduit end fitting part number(072)
(Grooved conduit end fitting)
Length of conduit assembly(52)
(52") "A" Dimersion
Right conduit end fitting part number(070)
(Threaded conduit end fitting)
Right innermember end fitting part number(TE505)
(Threaded conduit end fitting)
Length of innermember assembly(64.5)
(64.5) "L" Dimension
Travel in inches(6)


1500 Pound Series with Lined Conduit

(Ultimate Load: 1500 lbs./Minimum Bend Radius: 5")

Threaded Conduit End Fitting P/N 060 & 061
Grooved Conduit End Fitting P/N 026
Grooved Conduit End Fitting P/N 027
Grooved Conduit End Fitting P/N 062
Grooved Conduit End Fitting P/N 064
Clip-Lock Conduit End Fitting P/N 065
48° Clip-Lock Conduit End Fitting P/N 066 & 067

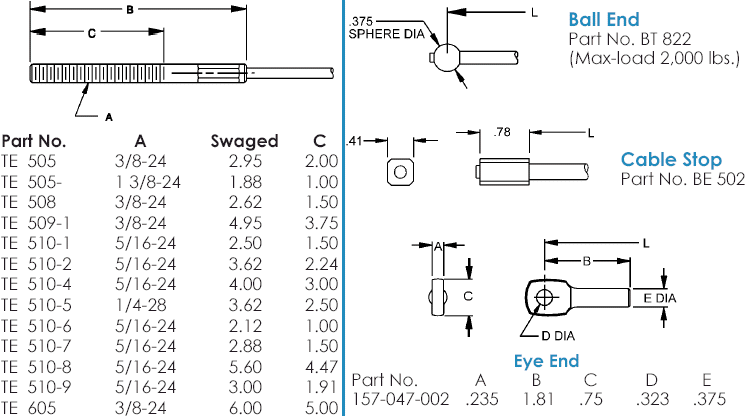

Threaded End Fitting, Cable Stop, Ball End & Eye End

3000 Pound Series with Lined Conduit

(Ultimate Load: 3000 lbs./Minimum Bend Radius: 7")

Threaded Conduit End Fitting P/N 070 & 071
Grooved Conduit End Fitting P/N 072 & 073
Grooved Conduit End Fitting P/N 074
Clip-Lock Conduit End Fitting P/N 075
48° Clip-Lock Conduit End Fitting P/N 076 & 077
Threaded End Fitting, Cable Stop, Ball End and Eye End

Call or Email for Pricing
