Commercial Control Heads
Factory assembled, trim-to-length, with stainless steel solid wire innermember.
Up to 3" travel, 5" min. bend radius and 20lb. pull load rating.
Micro Adjust
Twist Lock
Non-Lock
(Shown with 306 Knob)
 |
Twist-On Conduit Ends
(Standard for Control Heads on left)
|
 |
3/8" Dia
Part No. 161-775
|
(Optional for Control Heads on left)
|
 |
3/8 -24 UNF
Part No. 161-581
3/8" Dia
Part No. 161-579
|
Friction-Lock Kit
|
 |
For Part No. 29V00.
Includes adjustment ring and compression washer.
Part No. 165-510-215
|
|
 |
Part No. 286-009-L
("L"= Length) |
This control allows for
precise setting of the engine RPM when the PTO is engaged or as a manual
control of the idle position during engine warm up. (Friction lock
optional) |
|
 |

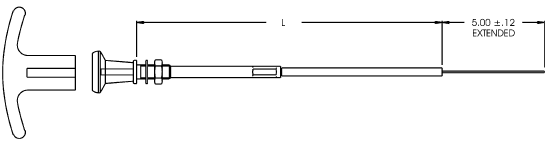

Part No. 165-437-L Black Knob ("L"= Length)
Part No. 165-438-L Black T-Handle ("L"= Length) |
Spiral wound flat wire conduit
.054" solid stainless innermember |
|
|
|
